All CDQ Prima models, from the basic CDQPrima 110 to the full-featured CDQPrima 230 feature the same superb audio specifications. With MUSICAM^® enhanced MPEG Layer 2, MPEG Layer 3 and G.722, CDQPrima offers connectivity at bit rates ranging from 24 to 384 kb/s. These wide choices of connect rates and algorithms make the CDQPrima ideal for any voice or music application, from intercom to studio master quality.

All CDQ Prima models use plug-in interface modules that allow you to connect directly to ISDN or to any digital transmission system with available V.35, X.21 or RS422A interfaces. With any 200 Series model, you can install up to three digital interfaces for higher ISDN bit rates or for multiple connections. CDQPrima's broadcast modes allow you to send two independent audio channels to two or more locations, or send the same monaural or stereo program to as many as six locations simultaneously.

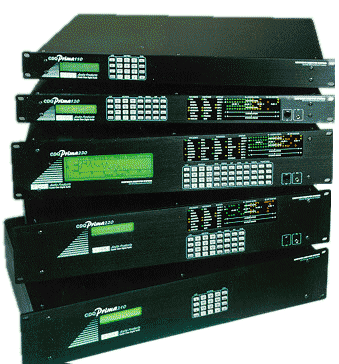

CDQ Prima Models

CDQ Prima 110
1 RU, character LCD, basic keypad, accepts 1 interface module.

CDQ Prima 210
2RU, character LCD, basic keypad, accepts 3 interface modules, AES/EBU (XLR) digital I/O and dual RS232 ancillary data channels.

CDQ Prima 120
1 RU, character LCD, accepts 1 Interface Module, AES/EBU (DB-9) digital I/O, encode & decode VU, correlation and stereo image meters, intelligent headphone output, enhanced keypad includes headphone control, direct menu access and cue keypad, cue & status LEDs and front panel RS232 remote control.

CDQ Prima 220
2RU, character LCD, accepts 3 interface modules, AES/EBU (XLR) digital I/O, encode & decode VU, correlation and stereo image meters, intelligent headphone output, enhanced keypad includes headphone control, direct menu access and cue keypad, cue & status LEDs, front panel RS232 remote control and dual RS232 ancillary data channels.

CDQ Prima 230
2RU, large, graphics LCD display with encoder and decoder real-time spectrum analysis and phase displays, accepts 3 Interface Modules, AES/EBU (XLR) digital I/O, encode & decode VU, correlation and stereo image meters, intelligent headphone output, extended feature keypad adds direct display function keys and eight user programmable 'hot' keys, extended front panel status LEDs, front panel RS232 remote control and dual RS232 ancillary data channels.

CDQ Prima Features

• Universal power supply - no need to change power supply frequency and voltages
• Universal Terminal Adapter - no need to change 'ROM' chips whan taking your CDQPrima to different countries
• 20 bit A/D, AES/EBU or S/PDIF digital audio I/O (standard on all models except 110). Up to 20 kHz bandwidth with better than 92 dB SNR and 0.01 THD+N. Built-in high quality rate adapters allow 24.05, 32, 44.1 and 48 kHz digital audio sampling rates with internal or external synchronization. High quality "intellegent" headphone circuits can monitor local and return audio on models 120, 220 and 230.
• Fully compatible MUSICAM-enhanced MPEG Layer 2, MPEG Layer 3 and G.722 algorithms support bit rates from 24 through 384 kb/s and sampling rates from 16 through 48 kHz. CCS Inverse Multiplexing, ITU J.52 BONDING and H.221 transport protocol are standard. In addition, only the CDQPrima allows you to adjust MPEG Layer 2 encoding algorithm parameters to tailor the audio to your application. All CDQPrima models are fully Eureka DAB compatible.
• BONDING of up to 6 x 64 kb/s channels for contribution quality is based on systems such as DAB ETS300401, ADR spec.1.3 or Direc-TV is supported as well as enhanced features for broadcasting, production studios, advertising and news agencies and many other applications.

CDQPrima 210, 220 and 230 rear panel showing 3 Digital Interface modules and SMPTE Time Code option

• Storage for 256 Speed Dial entries and Quick Configurations. Each Speed Dial entry contains all encoder and decoder configuration information and up to six ISDN "B" channel phone numbers. All CDQPrima models come pre-programmed with over two dozen of the most used configurations.
• SMPTE Time Code option on any 200 Series model
• Up to eight relay contacts and eight optically isolated inputs.
• Near and far-end remote control using an attached terminal or PC with RS232 or RS485 support. RS485 remote control allows up to 30 CDQPrima units to be controlled by the same PC.
• An optional Windows® Remote Control program is available for easy point-and-click operation.
• Software updates, available on our Internet Web site, can be loaded directly into the CDQPrima through the remote control port.
• All functions can be password protected with a unique multi-level security system.
